E glass yarns
PTFE impregnation
Inert lubricant

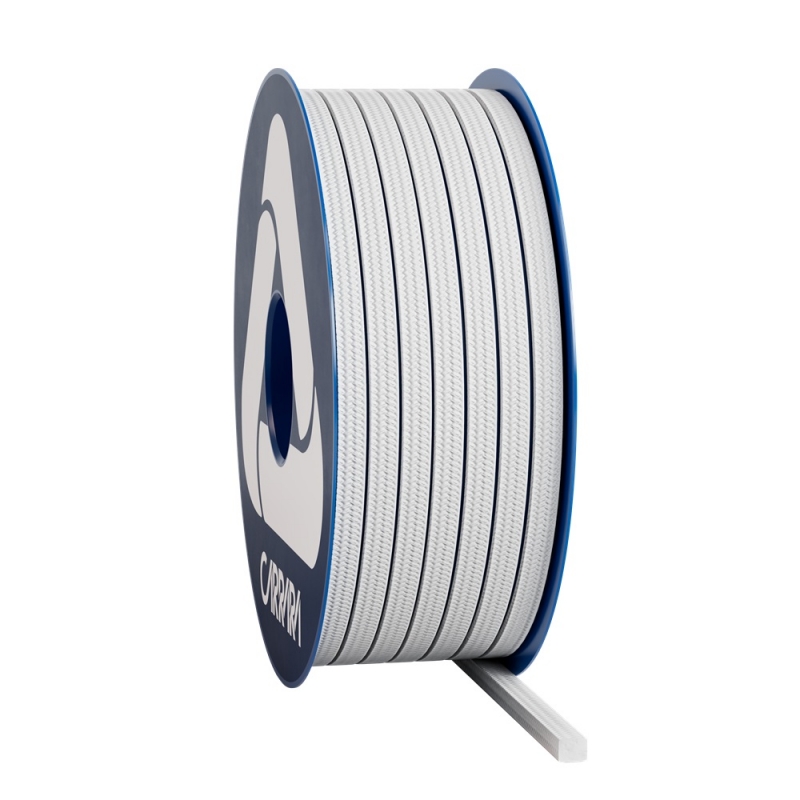

The glass fiber packing V9944 is braided with E glass yarns. The packing is impregnated with PTFE and lubricants silicon free. V9944 is a general-purpose packing, extremely versatile and of excellent quality, meeting the requirements of cost-effectiveness and ease of use. Available in the style V9900 without impregnation.
Packing suitable for general uses in dynamic services.
| P bar | Ibf/in2 | Vm/S | f/pm | pH | T°C | T°F | |
|---|---|---|---|---|---|---|---|
 |
60 | 900 | 1 | 200 | 2 ÷ 12 | -50 ÷ 280 | -60 ÷ 540 |
 |
40 | 600 | 2 | 400 | |||
 |
20 | 300 | 15 | 3000 |
Never use the product to the maximum temperature and pressure associated. Consult the manufacturer for further information
The peak temperature can be sustained for short exposures
| sezione mm | sezione inch | kg/box | lbs/box | mt/box | ft/box | mt/kg | ft/lbs |
|---|---|---|---|---|---|---|---|
| 3 | 1/8" | 1 | 2.2 | 50.0 | 164.0 | 50.0 | 74.5 |
| 4 | - | 1 | 2.2 | 33.3 | 109.3 | 33.3 | 49.6 |
| 5 | 3/16" | 1 | 2.2 | 20.0 | 65.6 | 20.0 | 29.8 |
| 6 | - | 2.5 | 5.5 | 35.7 | 117.1 | 14.3 | 21.3 |
| 6.5 | 1/4" | 2.5 | 5.5 | 31.3 | 102.7 | 12.5 | 18.7 |
| 8 | 5/16" | 2.5 | 5.5 | 19.2 | 63.0 | 7.7 | 11.4 |
| 9.5 | 3/8" | 2.5 | 5.5 | 14.7 | 48.2 | 5.9 | 8.8 |
| 10 | - | 2.5 | 5.5 | 12.5 | 41.0 | 5.0 | 7.4 |
| 11 | 7/16" | 2.5 | 5.5 | 11.4 | 37.4 | 4.5 | 6.8 |
| 12 | - | 2.5 | 5.5 | 9.6 | 31.5 | 3.8 | 5.7 |
| 12.7 | 1/2" | 2.5 | 5.5 | 8.6 | 28.2 | 3.4 | 5.1 |
| 14 | 9/16" | 5 | 11 | 13.9 | 45.6 | 2.8 | 4.1 |
| 16 | 5/8" | 5 | 11 | 10.6 | 34.8 | 2.1 | 3.2 |
| 17.5 | - | 5 | 11 | 9.6 | 31.5 | 1.9 | 2.9 |
| 18 | 11/16" | 5 | 11 | 8.3 | 27.2 | 1.7 | 2.5 |
| 19 | 3/4" | 5 | 11 | 7.7 | 25.3 | 1.5 | 2.3 |
| 22 | 7/8" | 5 | 11 | 6.0 | 19.7 | 1.2 | 1.8 |
| 25.5 | 1" | 5 | 11 | 4.7 | 15.4 | 0.9 | 1.4 |
The weight per meter and the packaging's weight may have a tolerance of +/- 10%. Other sizes and packaging are available on demand.
