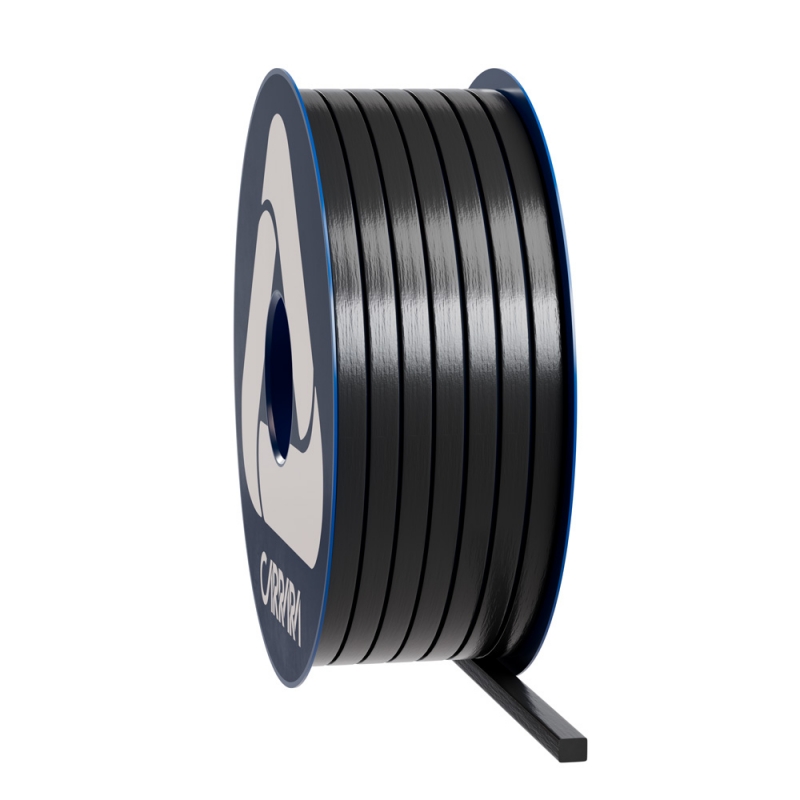

PTFE Packing 55G

Composition

Unsintered extruded PTFE filled with graphite and inorganic lubricant.

Characteristics

55G is an unsintered extruded pure PTFE filled with graphite and inorganic lubricant. The 55G packing minimizes the damaging of the pump shaft thanks to its softness. Due to the high PTFE content, 55G resists the the chemical attacks throughout the whole pH array with the exception of fluorinated and alkaline compounds.

Applications

The packing 55G is suitable for all fluids able to work with the PTFE as acids and alkalis, oils, gases, solvents and steam with the exception of those oxidizing. 55G can be used on the centrifugal and piston pumps, mixers, agitators and expansion joints.

PTFE Packing 55G
  P bar Ibf/in2 Vm/S f/pm pH T°C T°F
10 150 10 2000 0 ÷ 14 -50 ÷ 260 -60 ÷ 500
  • Never use the product to the maximum temperature and pressure associated. Consult the manufacturer for further information

  • The peak temperature can be sustained for short exposures

sezione mm sezione inch kg/box lbs/box mt/box ft/box mt/kg ft/lbs
3 1/8" 1 2.2 55.6 182.4 55.6 82.8
4 - 1 2.2 31.3 102.7 31.3 46.6
5 3/16" 1 2.2 22.2 72.8 22.2 33.1
6 - 2.5 5.5 35.7 117.1 14.3 21.3
6.5 1/4" 2.5 5.5 29.4 96.5 11.8 17.5
8 5/16" 2.5 5.5 20.8 68.2 8.3 12.4
9.5 3/8" 2.5 5.5 14.2 46.6 5.7 8.5
10 - 2.5 5.5 13.9 45.6 5.6 8.3
11 7/16" 2.5 5.5 11.5 37.7 4.6 6.8
12 - 2.5 5.5 9.3 30.5 3.7 5.5
12.7 1/2" 2.5 5.5 8.1 26.6 3.2 4.8
14 9/16" 5 11 13.5 44.3 2.7 4.0
16 5/8" 5 11 5.0 16.4 1.0 1.5
17.5 - 5 11 9.6 31.5 1.9 2.9
18 11/16" 5 11 8.6 28.2 1.7 2.6
19 3/4" 5 11 7.7 25.3 1.5 2.3
22 7/8" 5 11 5.4 17.7 1.1 1.6
25.5 1" 5 11 4.2 13.8 0.8 1.3
  • The weight per meter and the packaging's weight may have a tolerance of +/- 10%. Other sizes and packaging are available on demand.
