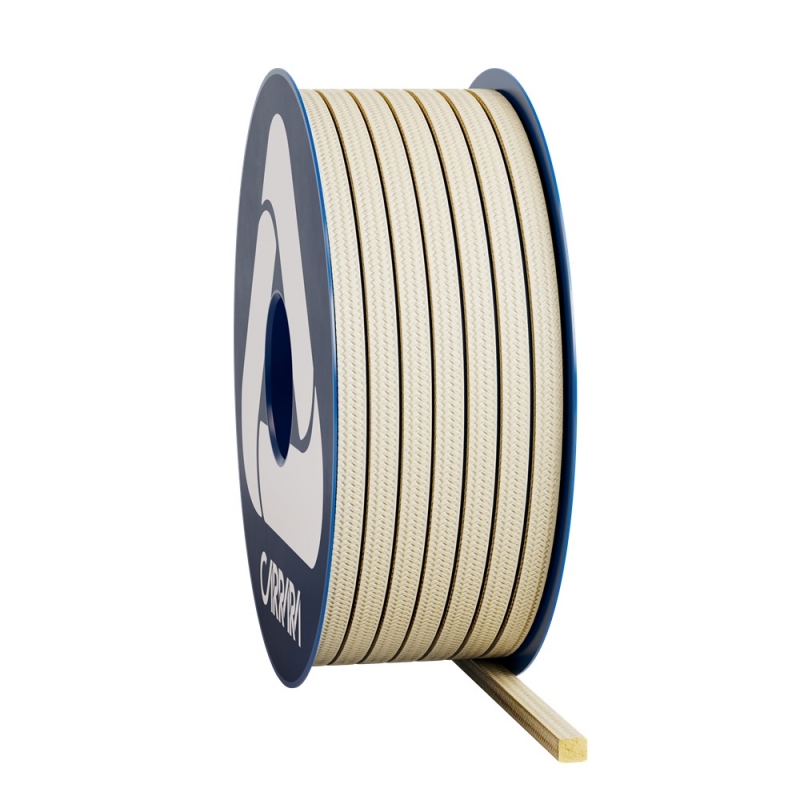

Aramid Packing KD6104

Composition

Discontinuous Aramid Yarn

PTFE Impregnation

Silicone-Free Lubricant

Characteristics

KD6104 is an aramid fiber packing made with twisted aramid fiber yarn. The impregnation occurs in 2 stages: one on the yarn, a second during the braiding process. The KD6104 packing is a universal use packing for dynamic applications with an excellent quality/price ratio.

Applications

The KD6104 aramid packing is a high-performing product designed for use in slurry service pumps that require reliable and durable sealing. The KD6104 packing meets these requirements thanks to its properties that ensure effective leak control. Another feature of the KD6104 packing is its low friction, which reduces wear on shafts and sleeves. This is an important advantage for pumps as wear on rotating parts can cause leaks and operational issues. Thanks to this feature, the KD6104 packing reduces the need for maintenance of mechanical parts.

Aramid Packing KD6104
Download DS
Download IDS
Check availability in stocklist
  P bar Ibf/in2 Vm/S f/pm pH T°C T°F
80 1200 2 400 3 ÷ 12 -100 ÷ 250 -150 ÷ 480
15 225 15 3000

  • Never use the product to the maximum temperature and pressure associated. Consult the manufacturer for further information

  • The peak temperature can be sustained for short exposures

sezione mm sezione inch kg/box lbs/box mt/box ft/box mt/kg ft/lbs
3 1/8" 1 2.2 66.7 218.8 66.7 99.3
4 - 1 2.2 37.0 121.4 37.0 55.1
5 3/16" 1 2.2 23.8 78.1 23.8 35.5
6 - 2.5 5.5 41.7 136.8 16.7 24.8
6.5 1/4" 2.5 5.5 35.7 117.1 14.3 21.3
8 5/16" 2.5 5.5 25.0 82.0 10.0 14.9
9.5 3/8" 2.5 5.5 17.9 58.7 7.1 10.7
10 - 2.5 5.5 16.7 54.8 6.7 10.0
11 7/16" 2.5 5.5 13.7 44.9 5.5 8.2
12 - 2.5 5.5 11.9 39.0 4.8 7.1
12.7 1/2" 2.5 5.5 10.4 34.1 4.2 6.2
14 9/16" 5 11 16.7 54.8 3.3 5.0
16 5/8" 5 11 13.2 43.3 2.6 3.9
17.5 - 5 11 11.6 38.1 2.3 3.5
18 11/16" 5 11 10.2 33.5 2.0 3.0
19 3/4" 5 11 9.3 30.5 1.9 2.8
20   5 11 8.8 29.0 1.8 2.7
22 7/8" 5 11 6.8 22.3 1.4 2.0
25.5 1" 5 11 5.3 17.4 1.1 1.6

  • The weight per meter and the packaging's weight may have a tolerance of +/- 10%. Other sizes and packaging are available on demand.
