Composition
Available Ring Type Joint styles:
-
R, RX and BX in accordance with ASME B16.20 - API 6A
-
SRX and SBX in accordance with API 6D for Subsea applications
-
IX L-005 in accordance with Norsok L-001
-
Lens Gasket in accordance with DIN 2696
-
Custom RTJ
Characteristics

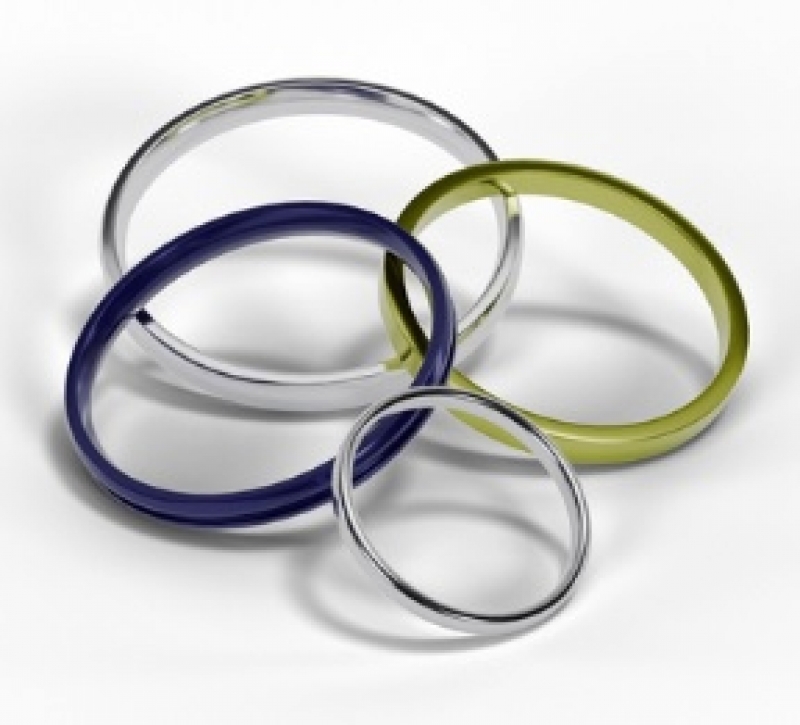

Planisteel RJ Ring Joint gaskets are manufactured in compliance with API 6A and ASME B16.20 standards for high-temperature and high-pressure applications. The contact surfaces between the gasket and the flange must be carefully machined to ensure maximum gasket performance. Thanks to our modern equipment and meticulous production process, we are able to guarantee surface hardness and tolerances in accordance with specifications.
Ring Type Joint (RTJ) gaskets are metallic seals originally designed for the high-pressure and high-temperature conditions typical of the oil industry. They are mainly used in the Oil & Gas sector but are also commonly employed in valves, pipeline flanges, and pressure equipment in other services, as they are suitable for applications covering the entire pressure and temperature range of industrial services.
| Performance Specifications | UM | Value |
|---|---|---|
| Minimum temperature | °C | -200see note |
| Maximum Temperature | °C | 550see note |
| Maximum Pressure | bar | according to the gasket rating |
| Min. Gasket Seating Stress - Sgmin-SL=0.001 | MPa | 180see note |
| Min. Gasket Operating Stress - Sgmin-O | MPa | 100see note |
| Max Gasket Operating Stress - Sgmax | MPa | 400see note |
Applications
Ring Type Joint gaskets for RTJ flanges.
