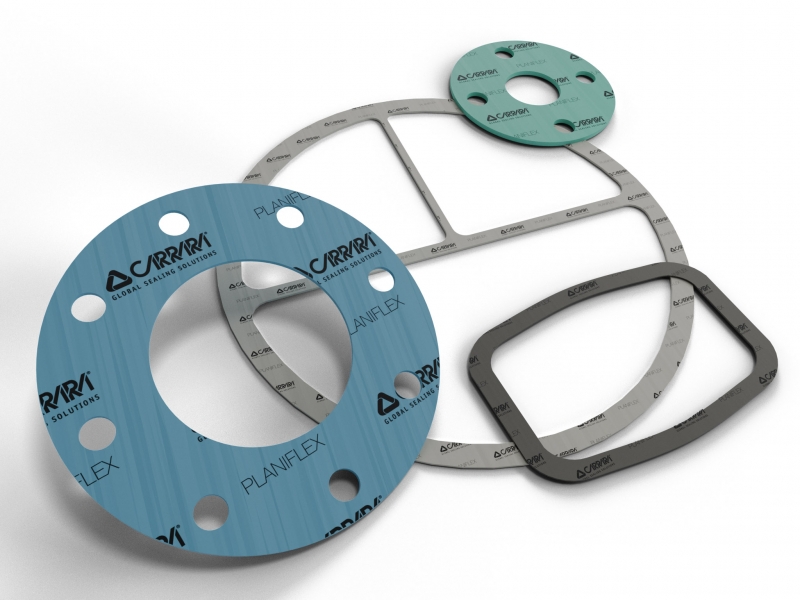

Planiflex™ Compressed fiber gaskets |
||||||
---|---|---|---|---|---|---|
Properties thickness 1,5 mm | Unit | PF41 | PF63 | PF64 | PF65 | PF81 |
Binder | -- | NBR | NBR | NBR | NBR | NBR |
Compressibility ASTM F 36 | % | 9 | 11 | 11 | 10 | 11 |
Recovery ASTM F 36 | % | 60 | 50 | 55 | 55 | 50 |
Tensile strength DIN 52910 | N/mm2 | 8 | 6 | 8 | 9 | 8 |
Density +/- 5% | g/cm3 | 1,8 | 1,9 | 1,7 | 1,9 | 1,9 |
Stress resistance DIN 52913 | ||||||
16 h, 300 °C, 50 N/mm2 | N/mm2 | -- | -- | 25 | 29 | 22 |
16 h, 175 °C, 50 N/mm2 | N/mm2 | 20 | 25 | 28 | 34 | 28 |
Thickness increase acc.to ASTM F 146 | ||||||
Oil IRM 903, 5 h, 150 °C | % | 10 | 12 | 10 | 6 | 5 |
ASTM Fuel B, 5 h, 23 °C | % | 10 | 10 | 10 | 6 | 5 |
Distilled water. 5h. 100°C | % | 4 | -- | 3 | 2 | 2 |
Max. operating conditions | ||||||
Peak temperature | °C | 180 | 250 | 350 | 400 | 350 |
Continuous temperature | °C | 140 | 180 | 250 | 330 | 250 |
Continuous temperature with steam | °C | 120 | 150 | 220 | 250 | 220 |
Pressure | bar | 40 | 50 | 100 | 120 | 100 |
Do not use the product at maximum temperature values or for applications with pressures higher than those typical of Flue Gas without first consulting the manufacturer
The peak temperature can be sustained for short exposures
Planiflex™ Compressed fiber gaskets Dimensions | ||
---|---|---|
mmxmm | inches (") | |
Dimension (WxL) | 1500x1500 | 60x60 |
Dimension (WxL) | 1500x3000 | 60x120 |
Thickness (H) | 0.4 ÷ 5.0 | 1/64 ÷ 3/16 |
The Planiflex™ gasket sheet line is made from organic and inorganic fiber-based materials bound with NBR. These materials are carefully selected to meet high performance standards for a wide range of industrial applications.
Planiflex™ gaskets are suitable for sealing with vapors, lubricants, solvents, gases, steam, and many diluted acids and alkalis, and can also be used as gaskets together with PTFE envelopes.
The Planiflex™ line includes the following models:
PF41 – Cellulose fibers, inert materials, and NBR binder
PF63 – Aramidic and inorganic fibers with NBR binder
PF64 – Aramidic fibers, inert materials, and NBR binder
PF65 – Inorganic and glass fibers, inert materials, and NBR binder
PF81 – Aramidic fibers, lamellar graphite, inert materials, and NBR binder
The Planiflex™ compressed fiber sheets for asbestos-free gaskets show excellent sealing capability and can be used with oils, gases, fuels, and inorganic acids. Planiflex™ also demonstrates excellent stress retention properties and outstanding sealing performance.
Planiflex™ can be applied continuously within the temperature range specified in the technical datasheet and within the pressure ranges up to 300/600 lbs and PN16/40 ratings. These gaskets show chemical compatibility within the pH range typical of nitrile rubbers.
