Composition

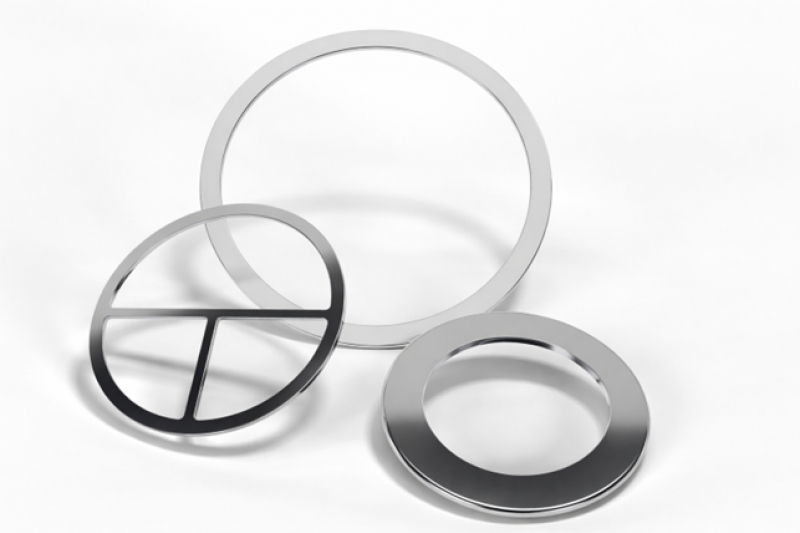

Flat solid metal gaskets type Planisteel Solid MS are generally manufactured from metals such as copper, aluminium, stainless steel, nickel, titanium or special alloys, selected according to the operating conditions. All industrial metals are available.
Characteristics
The structure of flat solid metal gaskets type Planisteel Solid MS is simple and consists of a flat metal ring with a smooth surface, designed to be compressed between two flanges. The operating principle is based on the controlled plastic deformation of the metal, which allows the gasket to adapt to the micro-irregularities of the flange surfaces and create a tight barrier against fluid leakage.
Despite their excellent performance, these gaskets also present some limitations because they require:
-
high bolt loads to achieve sufficient deformation
-
very precise and smooth flange surfaces
-
careful installation, because metal has a lower ability to compensate for defects compared to soft gaskets.
Applications
This type of gasket is mainly used in severe operating conditions, for example:
-
petrochemical plants and refineries
-
high-pressure and high-temperature systems
-
nuclear and aerospace facilities
-
process lines handling aggressive fluids
The main advantages of flat solid metal gaskets include:
-
high mechanical strength
-
excellent thermal stability
-
corrosion resistance (depending on the alloy used)
-
absence of non-metallic materials, useful in very aggressive or high-temperature environments
