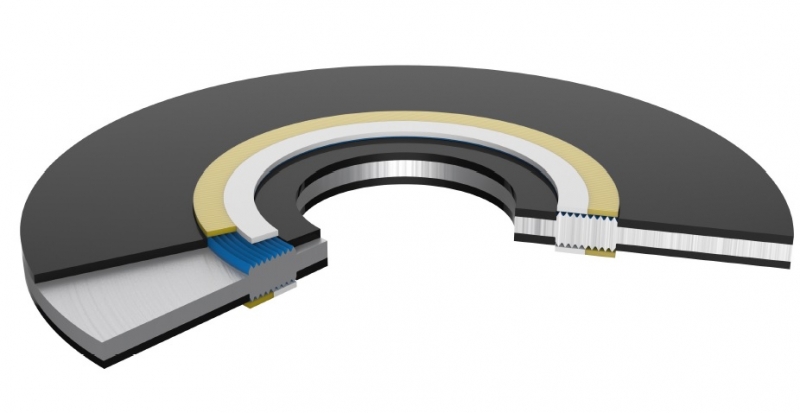

Guardian Performer Fire ICP

Thickness (camprofile gasket + sealing layers)
- 7.90 mm (0.3125”)
SS316L Metal Core thickness (other available on demand)
- 2.00 mm (0.080”)
GRE Laminate thickness (for side)
- 1.00 mm (0.040”)
GRE Laminate
- Option A: G10 (FR4)
- Option B: G11 (FR5)
Sealing Element
- Camprofile gasket with PTFE and MICA layers
Insulating sleeves
- Thickness: 0.90÷1.10 mm
  - Option A: GRE G10 (FR4)
  - Option B: GRE G11 (FR5)
Insulating washers
- Thickness: 3.00 mm
  - Option A: GRE G10 (FR4)
  - Option B: GRE G11 (FR5)
Metallic Washers
- Thickness: 3.00 mm
  - Option A: Zinc Plated Carbon Steel
  - Option B: Other metals on request

Insulating kit for flanges.

TEST METHOD	FEATURES	Mylar^® ⁽¹⁾	Nomex^®⁽¹⁾	G10 (FR4)⁽²⁾	G11 (FR5)⁽²⁾
D149	Dielectric Strength KV/mm Short Time	15,8	18,0	-29,5÷31,50	21,5
D695	Compressive Strength (MPa)	-	-	448,0	434,0
D638	Tensile Strength (MPa)	69,0	620,0	344,0	290,0
D570	Water Adsorption (%)	0,8	7,0	0,1	0,1
--	Temperature - Operating °C	-50÷150	-50÷230	-150÷150	-75÷200

Note (1): Material available only for sleeves.

Note (2): Material available for retainer, sleeve and washer.

Gasket Pressure range		Sealing Element - Temperature range
ASME Gasket Pressure Range	150÷2500 lbs	PTFE	-200°C÷260°C
API Gasket Pressure Range	2000÷10000 psi	MICA	-200°C÷1000°C
PN Gasket Pressure Range	PN2,5÷PN420

* The maximum operating temperature of the kit is the lowest among its individual components.

* Customized kits are available with tailored thickness and component materials.
