Composition
Unless otherwise specified, Planisteel Camprofile gaskets will be manufactured according to the following criteria:
-
Profile design in accordance with ASME B16.20
-
Metallic core thickness: 3.00 mm
-
Graphite layer thickness: 0.50 mm (each side)
-
Total gasket thickness: 4.00 mm
-
Industrial grade graphite, C > 98.00%
-
Metal type and configuration (no ring – NR, integral ring – IR, loose ring – LR) according to customer specification
-
Sealing Factors:
-
Sgmin: 55.0 MPa
-
So-gmin: 26.0 MPa
-
m = 2.5
-
y = 4350 psi
-
Characteristics

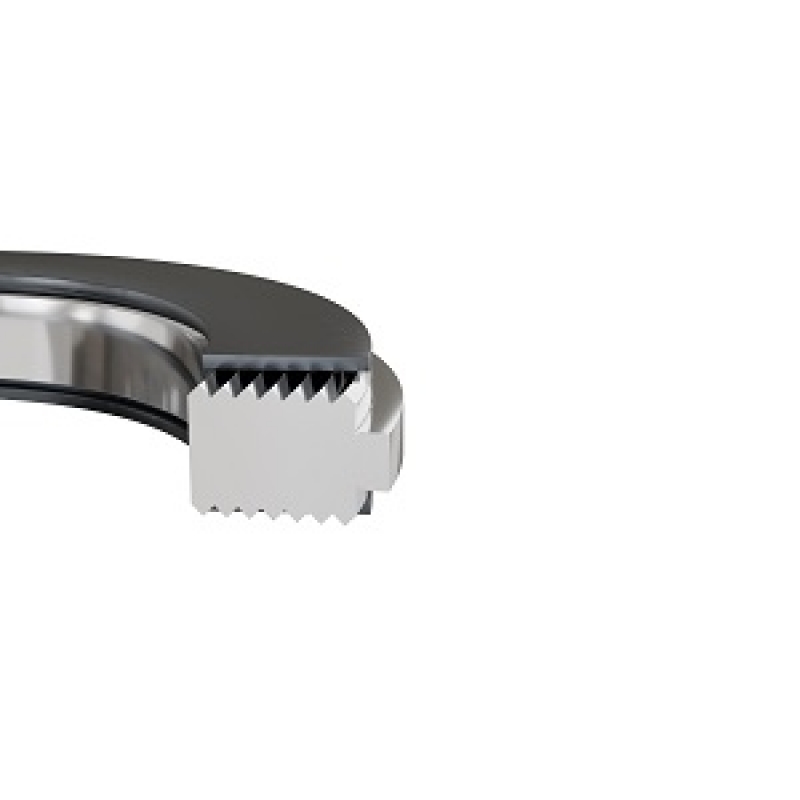

Planisteel Camprofile gaskets consist of a grooved metallic core covered on both sides with a soft sealing material.
Production follows the profile design specified in ASME B16.20, although customized profiles or compliance with other standards can also be provided. The concentric grooves in the core ensure excellent sealing performance even under low bolt loads, while the soft facing material allows for optimal adaptation to flange surface irregularities.
Applications
Gaskets for pipeline and heat exchangers flanges, suitable for pressure classes 150 to 2500.
They are designed to ensure reliable sealing of flanged joints in all applications within chemical and petrochemical plants, refineries, and power generation facilities.
