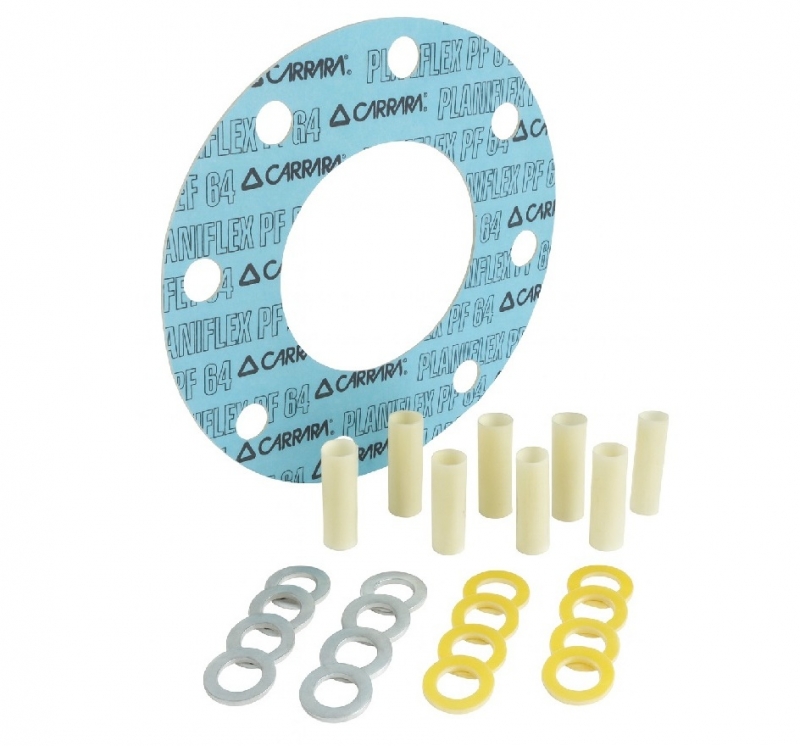

Guardian Basic ICSF

Composition

  • Gasket: Compressed fibres style Planiflex PF64
    • Thickness 3.00 mm
  • Insulating sleeves
    • Thickness: 0.90÷1.10 mm
      • Option A: GRE G10 (FR4)
      • Option B: GRE G11 (FR5)
  • Insulating washers
    • Thickness: 3.00 mm
      • Option A: GRE G10 (FR4)
      • Option B: GRE G11 (FR5)
  • Metallic Washers
    • Thickness: 3.00 mm
      • Option A: Zinc Plated Carbon Steel
      • Option B: Other metals on request

Characteristics

For the technical characteristics of PlaniflexTM PF64, please refer to the following technical data sheet: compressed-fiber-gaskets-planiflex-pf64

Applications

Flange isolation kit.

Guardian Basic ICSF
Download DS
Download IDS
Check availability in stocklist



TEST METHOD

FEATURES

 G10 (FR4)(4) G11 (FR5)(4) CSF Aramid NBR(2)
D149 Dielectric Strength KV/mm Short Time -29,5÷31,50 21,5 4,7
D695 Compressive Strength (MPa) 448,0 434,0 65,0
D638 Tensile Strength (MPa) 344,0 290,0 9,0
D570 Water Adsorption (%) 0,1 0,1 4,5
-- Temperature - Operating °C -150÷150 -75÷200 -40÷250



TEST METHOD

FEATURES

 Phenolic(4) Phenolic Rubber Faced(3) MylarR (1) NomexR (1)
D149 Dielectric Strength KV/mm Short Time 20,0 20,0 15,8 18,0
D695 Compressive Strength (MPa) 172,0 172,0 - -
D638 Tensile Strength (MPa) 138,0 138,0 69,0 620,0
D570 Water Adsorption (%) 1,6 1,6 0,8 7,0
-- Temperature - Operating °C -50÷100 -40÷100 -50÷150 -50÷230



Note (1): Material available only for sleeves.

Note (2): Material available for retainer and sealing element.

Note (3): Material available for washer.

Note (4): Material available for sleeve and washer.



Gasket Pressure range



Sealing Element - Temperature range
ASME Gasket Pressure Range 150÷300 lbs   CSF -40°C÷250°C
PN Gasket Pressure Range PN2,5÷PN40



* The maximum operating temperature of the kit is the lowest among its individual components.

* Customized kits are available with tailored thickness and component materials.
