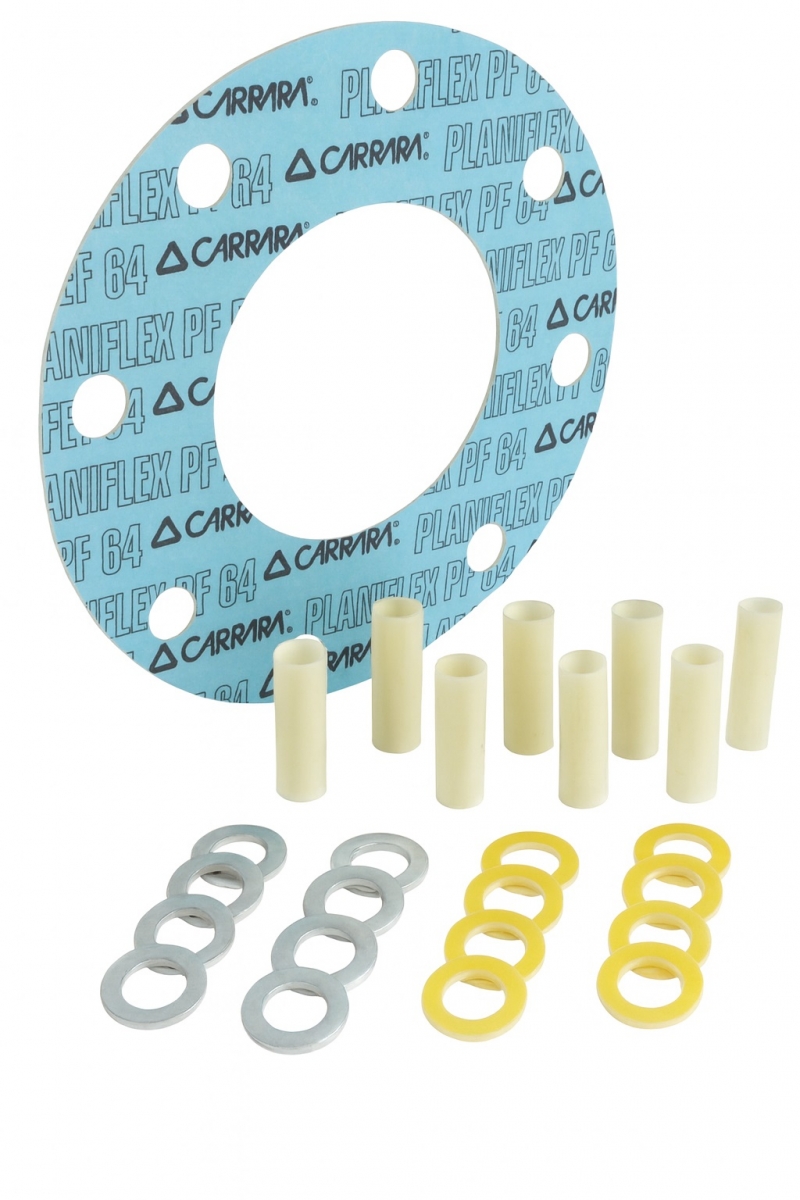

Guardian Basic ICSF

Composizione

  • Guarnizione in fibre compresse modello PlaniflexTM PF64, spessore 3,00 mm
  • Manicotti isolanti
    • Spessore: 0.90÷1.10 mm
      • Opzione A: GRE G10 (FR4)
      • Opzione B: GRE G11 (FR5)
  • Rondelle isolanti
    • Spessore: 3.00 mm
      • Opzione A: GRE G10 (FR4)
      • Opzione B: GRE G11 (FR5)
  • Rondelle metalliche
    • Spessore: 3.00 mm
      • Opzione A: Acciaio al carbonio zincato
      • Opzione B: Altri metalli a richiesta

Caratteristiche

Per le caratteristiche tecniche di PlaniflexTM PF64 consultare la seguente scheda tecnica: lastre-in-fibre-compresse-planiflex-pf64

Applicazioni

Kit isolante per flange.

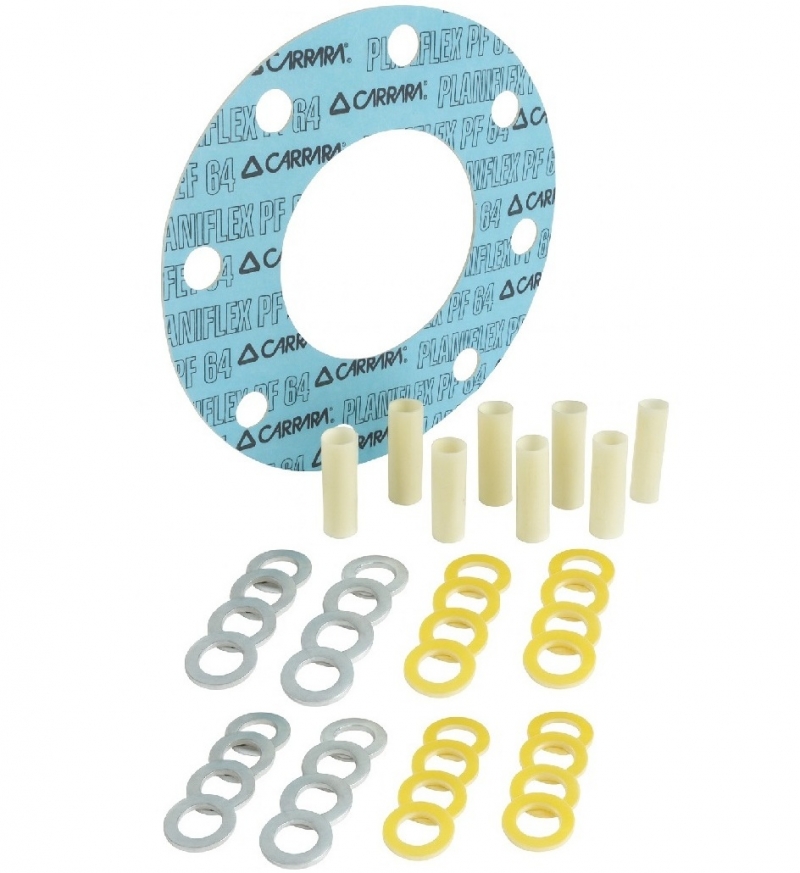

Guardian Basic ICSF
Download DS
Download IDS
Verifica disponibilità in stocklist



TEST METHOD

FEATURES

 Phenolic(4) Phenolic Rubber Faced(3) MylarR (1) NomexR (1) G10 (FR4)(4) G11 (FR5)(4) CSF Aramid NBR(2)
D149 Dielectric Strength KV/mm Short Time 20,0 20,0 15,8 18,0 -29,5÷31,50 21,5 4,7
D695 Compressive Strength (MPa) 172,0 172,0 - - 448,0 434,0 65,0
D638 Tensile Strength (MPa) 138,0 138,0 69,0 620,0 344,0 290,0 9,0
D570 Water Adsorption (%) 1,6 1,6 0,8 7,0 0,1 0,1 4,5
-- Temperature - Operating °C -50÷100 -50÷75 -50÷150 -50÷230 -150÷150 -75÷200 -40÷250

Note (1): Material available only for sleeves.

Note (2): Material available for retainer and sealing element.

Note (3): Material available for washer.

Note (4): Material available for sleeve, and washer.



Gasket Pressure range



Sealing Element - Temperature range
ASME Gasket Pressure Range 150÷300 lbs   PlaniflexTM PF64 -40°C÷250°C
PN Gasket Pressure Range PN6÷PN40



* The maximum operating temperature of the kit is the lowest among its individual components.

* Customized kits are available with tailored thickness and component materials.
