Synthetic yarns impregnated with PTFE and lubricant

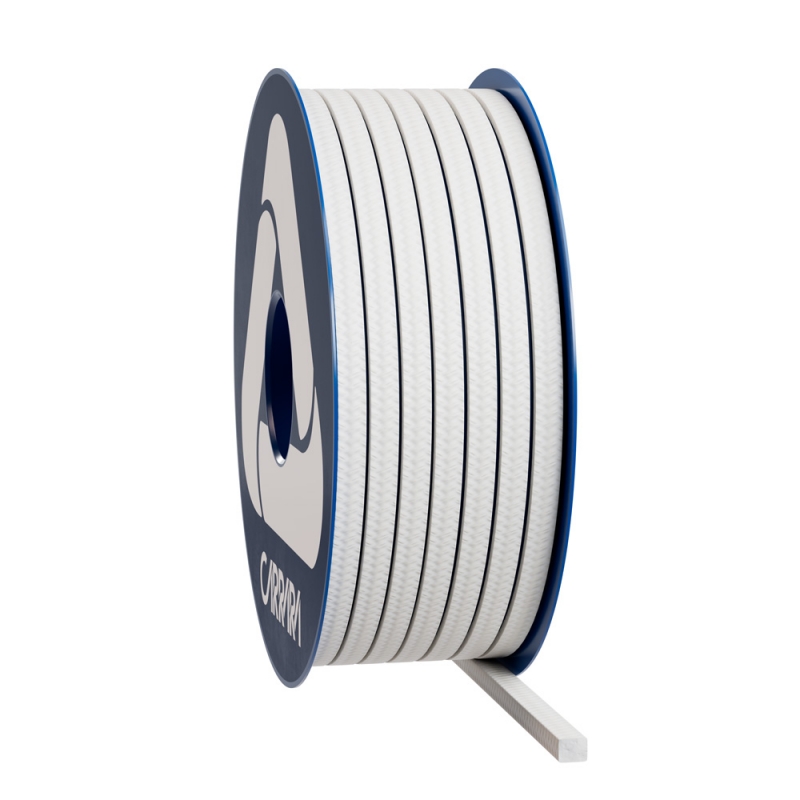

The pump gland packing N3104 is made with composite synthetic yarns impregnated with PTFE. It's available the graphitized compression packing N2109.
The pump gland packing N3104 is made with synthetic yarns impregnated with PTFE. N3104 is a braided packing for general sealing applications, extremely versatile, ease to use and high quality which meets the requirement of an economic product. This packing is available in the graphitized style N2109.
P bar | Ibf/in2 | Vm/S | f/pm | pH | T°C | T°F | |
---|---|---|---|---|---|---|---|
50 | 750 | 2 | 400 | 2 ÷ 12 | -100 ÷ 250 | -150/+480 | |
20 | 300 | 10 | 2000 | 2 ÷ 12 | -100 ÷ 250 | -150/+480 |
size mm | size inch | kg/box | lbs/box | mt/box | ft/box | mt/kg | ft/lbs |
3,0 | 1/8 | 1,0 | 2,2 | 100,0 | 328,1 | 100,0 | 149,0 |
4,0 | - | 1,0 | 2,2 | 50,0 | 164,0 | 50,0 | 74,5 |
5,0 | 3/16 | 1,0 | 2,2 | 25,0 | 82,0 | 25,0 | 37,2 |
6,0 | - | 2,5 | 5,5 | 19,2 | 63,0 | 7,7 | 28,6 |
6,5 | 1/4 | 2,5 | 5,5 | 41,7 | 136,8 | 16,7 | 62,1 |
8,0 | 5/16 | 2,5 | 5,5 | 19,2 | 63,0 | 7,7 | 28,6 |
9,5 | 3/8 | 2,5 | 5,5 | 20,8 | 68,2 | 8,3 | 31,0 |
10,0 | - | 2,5 | 5,5 | 19,2 | 63,0 | 7,7 | 28,6 |
11,0 | 7/16 | 2,5 | 5,5 | 15,6 | 51,2 | 6,2 | 23,2 |
12,0 | - | 2,5 | 5,5 | 13,2 | 43,3 | 5,3 | 19,7 |
12,7 | 1/2 | 2,5 | 5,5 | 11,9 | 39,0 | 4,8 | 17,7 |
14,0 | 9/16 | 5,0 | 11,0 | 20,0 | 65,6 | 4,0 | 29,8 |
16,0 | 5/8 | 5,0 | 11,0 | 15,2 | 49,9 | 3,0 | 22,7 |
17,5 | 11/16 | 5,0 | 11,0 | 13,2 | 43,3 | 2,6 | 19,7 |
18,0 | - | 5,0 | 11,0 | 11,9 | 39,0 | 2,4 | 17,7 |
19,0 | 3/4 | 5,0 | 11,0 | 7,7 | 25,3 | 1,5 | 11,5 |
22,0 | 7/8 | 5,0 | 11,0 | 8,6 | 28,2 | 1,7 | 12,8 |
25,5 | 1 | 5,0 | 11,0 | 6,7 | 22,0 | 1,3 | 10,0 |
